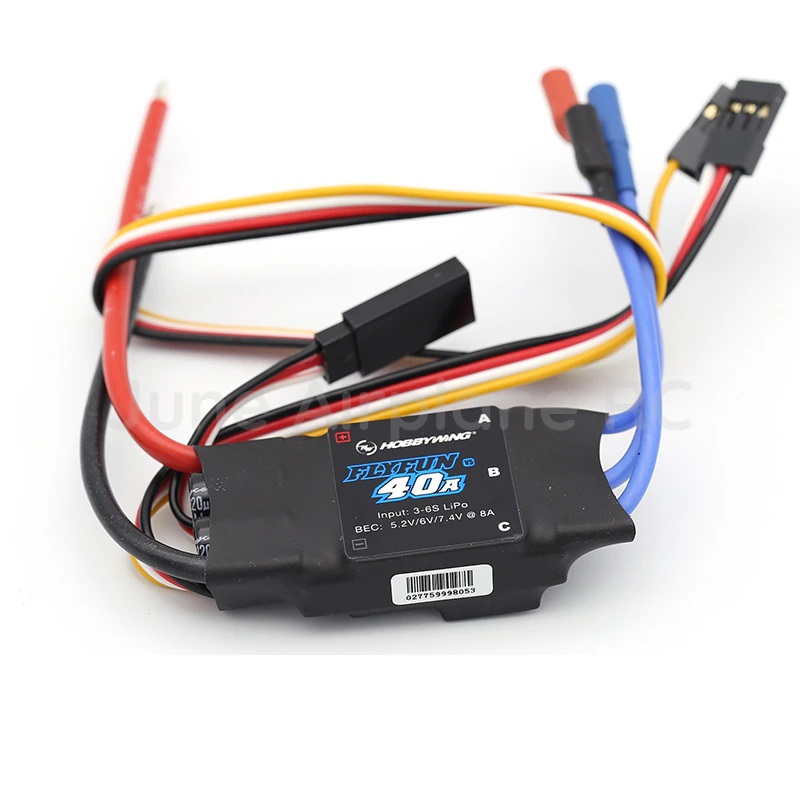

Hobby Wing : Flyfun Brushless Speed Controller 40A V5 for Aircraft

Specifications:

Model: FlyFun V5 40A

Cont.Current: 40A

Burst Current: 55A

BEC mode(Notel): Switch

BEC output: 5V/3A

Lipo: 2-6S

Nimh nicd: 5-18

User programm-able: Available

Weight: 39g

Size: 60x24x15mm

Features:

1. Extreme low output resistance, super current endurance. 

2. Multiple protection features: Low voltage cut-off protection / over-heat protection / throttle signal loss protection. 

3. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopter. 

4. Throttle range can be configured to be compatible with all transmitters. 

5. Smooth, linear and precise throttle response. 

6. Separate voltage regulator IC for microprocessor (except FLYFUN-6A and FLYFUN-10A) with good anti-jamming capability.

7. Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor). 

8. The pocket-sized Program Card can be purchased separately for easily programming the ESC at flying field. 

9. With a program card, user can activate the music playing function of the ESC, and totally there are 15 rhythms can be selected.
