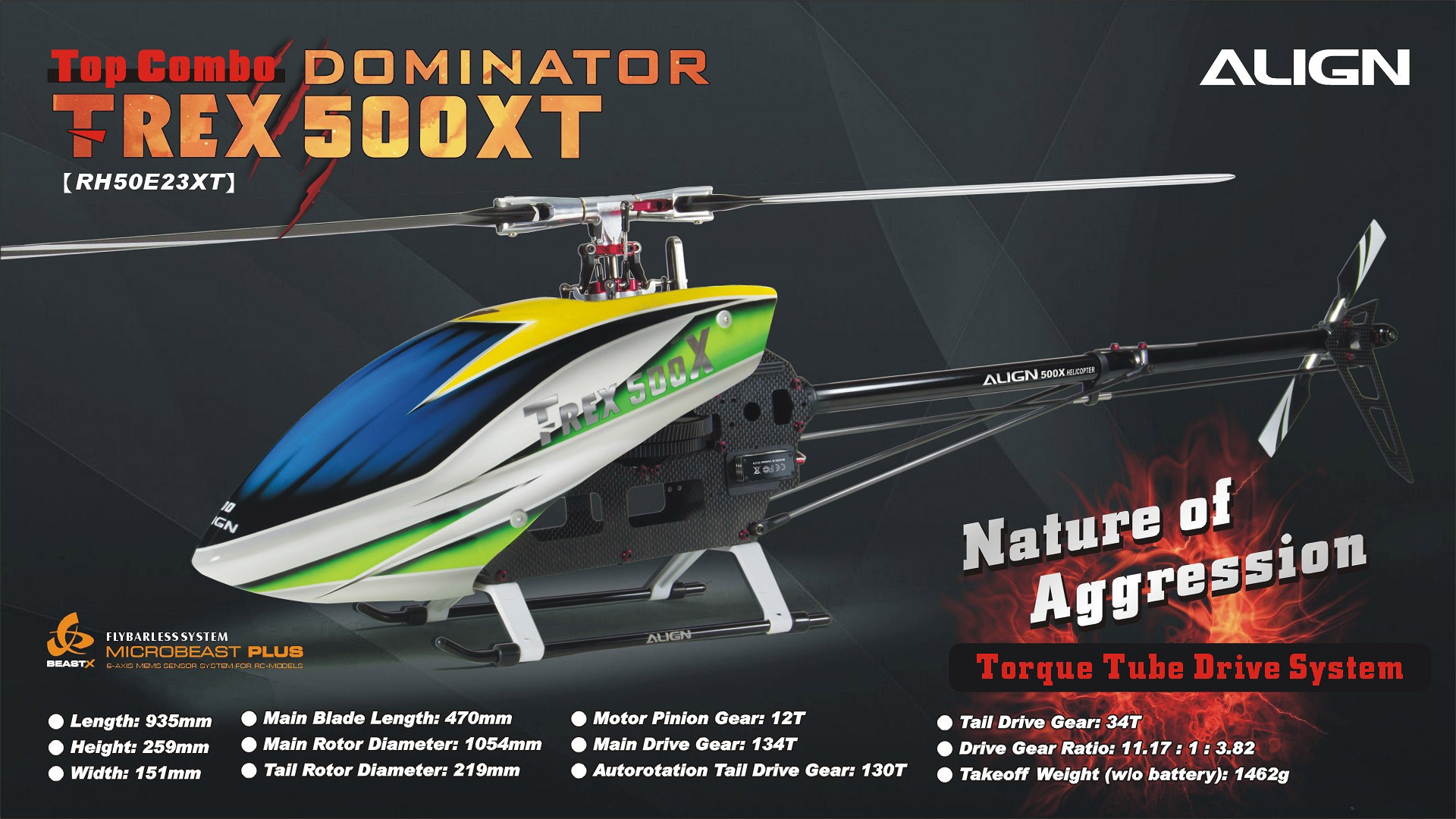

T-REX 500XT Top Combo ตัวลำ+ชุดไฟ

Experienced in numerous of innovations, the brand new T-REX 500XT is now ready to go. More attractive and creative design ideas are all in here, it absolutely would be your favorite T-REX 500XT model ever. The New Torque Drive System; The Better Performance Advantage.Refresh and refine, T-REX 500XT adapt with brand new FL rotor head system, utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 500XT main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. The 500XT utilizes a new torque drive assembly, highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. T-REX 500XT landing skid is tilted 5 degrees forward to improve crashworthiness.T-REX 500XT utilizes 470mm main blades and 520MX(1600KV/3527) motor with 20% power upgrades than the original 1600KV/3225 motor. The latest new RCE-BL80A Brushless ESC support dual BEC output from 6 ~ 8.4V providing efficient and superior power. The NEW DS530M/DS535M digital servos are with extreme torque and speed response allow to support faster, more precise and accurate flight performance.Equipped with all the top end electronic devices, T-REX 500XT is as stable and powerful like the large scale helicopters. It is about to re-define the 500-class helicopters in your mind.



Focus Shots















Standard equipment
Microbeast PLUS Flybarless System x 1 setRCE-BL80A Brushless ESC x 1520MX Brushless Motor(1600KV/3527) x 1DS530M Digital servo x 3DS535M Digital servo x 1




Specification
Length: 935mm Height: 259mm Width: 151mm Main Blade Length: 470mm Main Rotor Diameter: 1054mm Tail Rotor Diameter: 219mm Motor Pinion Gear: 12T Main Drive Gear: 134T Main Drive Pulley: 130T Tail Drive Gear: 34T Drive Gear Ratio: 11.17:1:3.82 Weight(w/o battery): approx. 1462g

Accessories
T-REX 500XT KIT Set x 1Microbeast PLUS Flybarless System x 1 set470 Carbon Fiber Blades x 178 Tail Rotor Blade x 1DS530M Digital servo x 3DS535M Digital servo x 1520MX Brushless Motor(1600KV/3527) x 1RCE-BL80A Brushless ESC x 1Radio transmitter and electronic equipment required for assembly:Transmitter(6-channel or more, helicopter system)Receiver(6-channel or more)6S Li-Po 2600 ~ 3300mAhDigital Pitch Gauge
