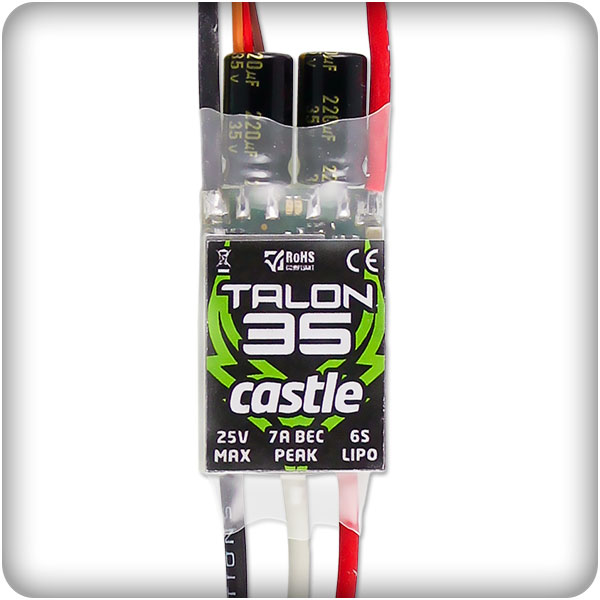

TALON 35A Castle

Item number
010-0122-00


Input voltage
MIN: 2S LiPo MAX: 6S LiPo


Max continuous amperage at full throttle
35 amps*


BEC voltage (voltage regulator for powering radio and servos)
5.5 volts


BEC output
7 amp peak** 5 amp continuous (always check servo draw prior to first flight)


Dimensions

Width: 0.88" (22.4mm) Length: 1.93" (49mm) Depth: 0.33" (8.4mm)



Weight (with wires)
0.98 oz. (27.8g)


Weight (without wires)
0.42 oz (12g)


Items needed for operation or installation

Battery connector and motor connectors sold separately



Programmability
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.



*RC HOBBY APPLICATION RATING: 35 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
**Peak indicates amperage sustainable for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.
