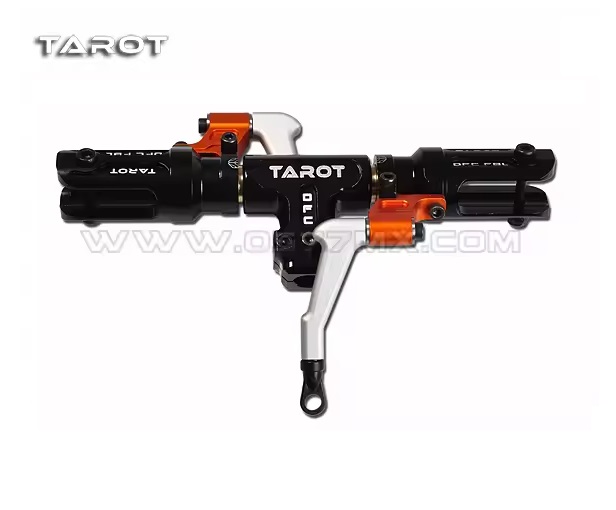

500dfc split lock rotor head assembly

�
500 DFC main rotor housing set x 1

500 feathering shaft sleeve x1

500 DFC head damper x 2(Φ6xΦ11x4mm)

Cup head hexagon screw x 1(M2.5 x14mm)

Cup head hexagon screw x 2(M2.5 x8mm)

M2.5 lock nut x 1

500DFC metal main rotor holder x2

500DFC feathering shaft x1¡]M3x6x74MM¡^

Bearing MR126ZZ x 4(Φ6xΦ12x4mm)

Positioning washer x2¡]6x9.7x0.5MM¡^

Thrust bearing x 2(Φ6.0xΦ12x4.5mm)

Washer x2¡]3.1x9.9x1.0MM¡^

M3x8MM cup head hexagon collar screwx2

M3x19MM cup head hexagon screwx2

M3 lock nut x2

Flange bearing x 4(Φ2.5xΦ6x2.5mm)

12.9 class M2.5*6MM cup head hexagon screw x2

12.9 class M2.5*11.7MM cup head hexagon screw x2

500DFC main rotor holder extension arm x2

Φ2.5xΦ4.0x6.0mm tube spacer x2

M2.5 set screw x 2(M2.5x12mm)

500 DFC main rotor ball link x2

500DFC tilt rod x2

M2x19 cup head hexagon collar screw x2
