7-colors LED RGB Circle Board

Description:
1. Input: 14 ~ 17V DC, 4S LiPo battery
2. DIP switch selected color (7 colors)
3. Size: light plate diameter 30mm, installation pitch 10mm, aperture 3mm
4. Weight: 2.5g
5. Packaging: X8-16V a circular light board, red and black power cord 30cm

Features:

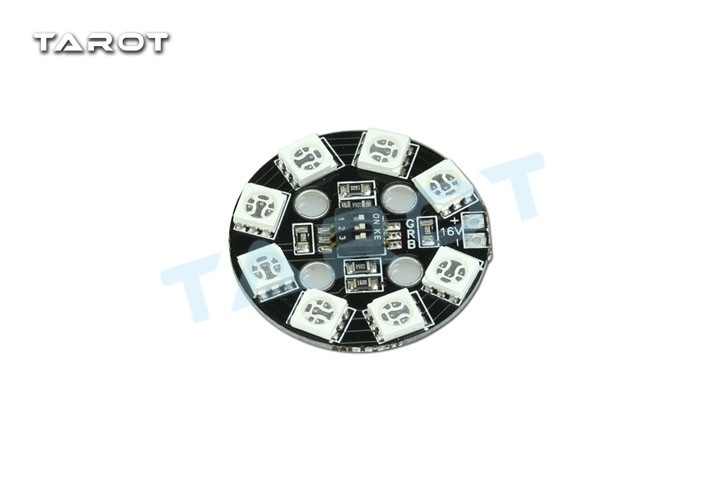

The LED light board with 8 RGB5050 lamp beads circular design, import-board DIP switches, toggle through the corresponding switch, seven color options.
Single lamp board maximum power 1.9W, super bright.
It can be used for multi-axis, through the machine, Helicopters, Cars and other light DIY.



Note:
1. Comes with a 30cm long red and black power cord, you need depending on the length of their own cutting and welding;
2. Note the polarity of the input and insulation;
3. Toggle the corresponding switch to ON selectable seven colors;
4. Behind recommend using double-sided foam adhesive on the body; for example, multi-axis motor base below.
5. Available between 14 ~ 17V input supply, 4S LiPo powered directly available.
6. High-brightness light board, do not look for a long time.Package Included:1 X Matek RGB LED X8 / 16V round 7-color light board
