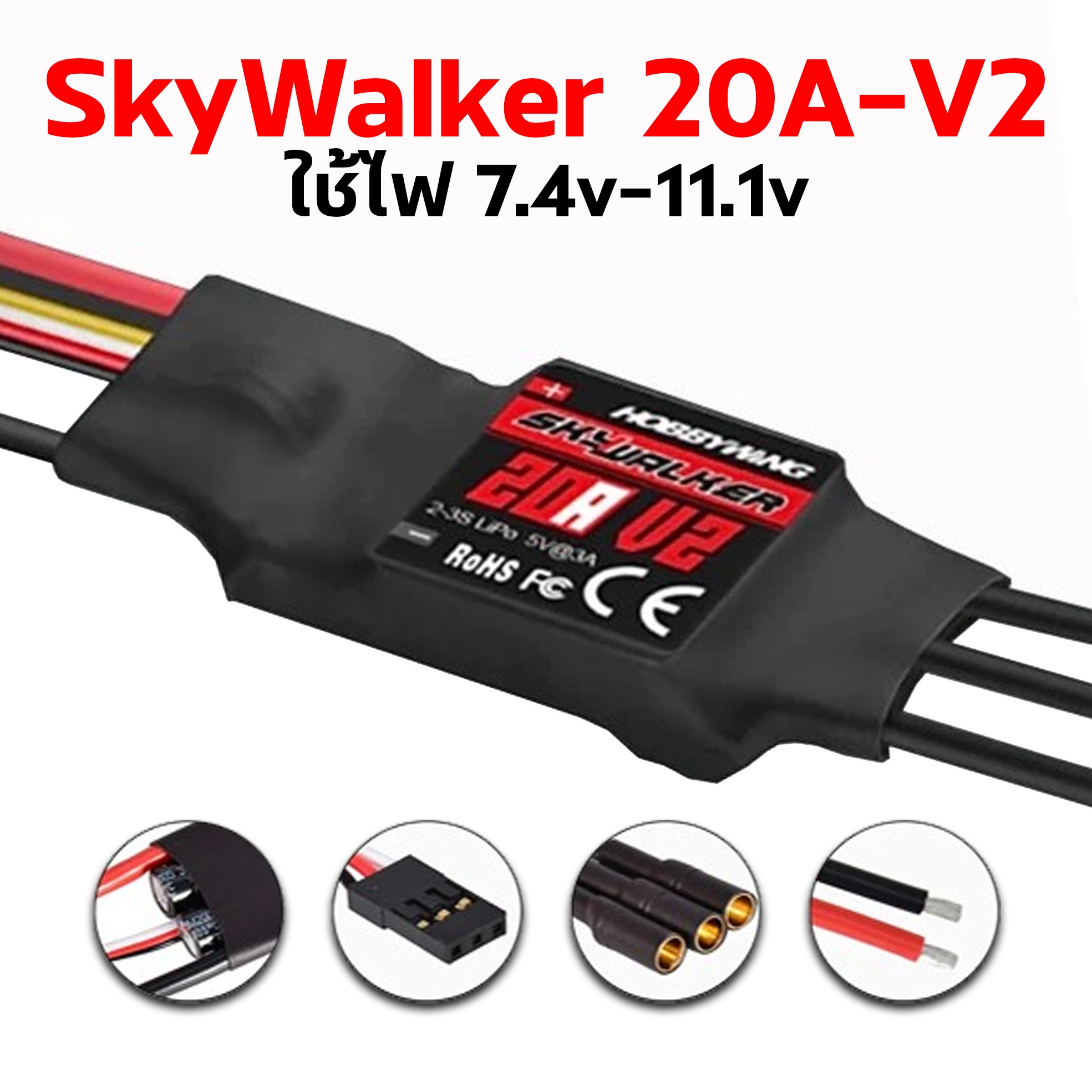

SKYWALKER 20A-V2

1 Specification

•Output: Continuous 20A, Burst 25A up to 10 Secs.
•Input Voltage: 2-3S lipo
•BEC: Linear mode BEC 2A
•Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
•Size: 42mm (L) * 25mm (W) * 8mm (H).
•Weight: 19g.
2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:

•Brake Setting: brake enabled / brake disabled.
•Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
•Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
•Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
•Start Mode: normal / soft / very soft.
•Timing: low / medium / high.
•Lipo Battery Cells: Auto calculate / Set the cells number manually.
•Reset: reset all the programmable items to its default setting.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
