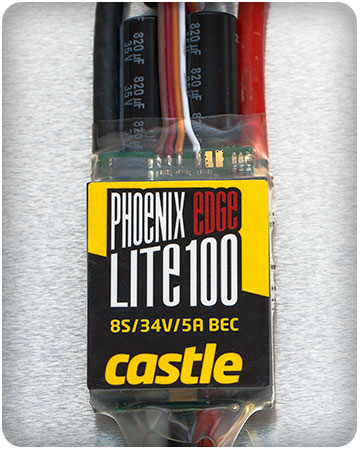

Phoenix Edge ICE Lite 100A

Applications


Helis:
N/A


Fixed wing:
N/A


Technical Specs


Input voltage:
MIN: 2S LiPo MAX: 8S LiPo


Max continuous amperage at full throttle:
100 amps*


BEC voltage (voltage regulator for powering radio and sevos):
User selectable choice from 5 to 8.4 volt output


BEC output amperage:
5 amp peak**


Size and Weight


Width:
1.2" (30.5mm)


Length:
2.6" (66mm)


Height:
0.8" (21.4mm)


Weight w/wires:
3.2 oz (91.5g)


Weight w/o wires:
1.4 oz (41g)


Miscellaneous


Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software.
Castle Field Link Programming Card (sold separately) compatible for select functions.


Connectors:
Battery and motor connectors sold separately


Tools needed for installation:
Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.





*RC HOBBY APPLICATION RATING: 100 amps with appropriate cooling. Phoenix Edge Lite controllers are designed without a heat-sink for applications with extreme air-flow, such as EDF planes, or applications with average current requirements much less than peak current requirements. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.


**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary. Always confirm servo current draw before the first flight of the model.
