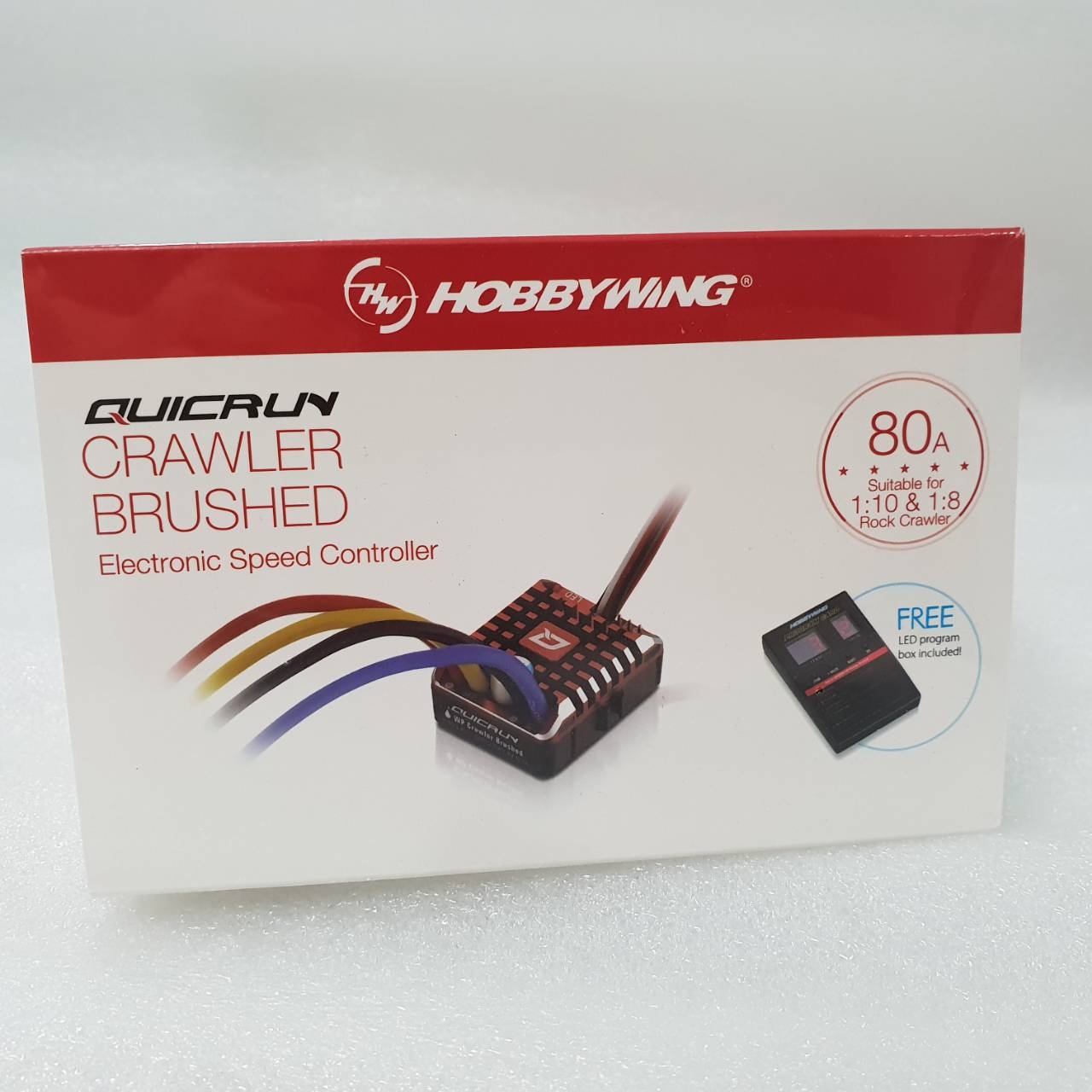

QuicRun Carwler Brushed 80A

QUICRUNBrushed ESC
WP 1080 Rock CrawlerBRUSHED ESC


WP 1060 BRUSHED ESC


p/n
30112750
30120201







Waterproof
Yes
Yes


Dual Mode
No
No



Fwd Cont. / Peak
Rev Cont. / Peak

80A / 400A30A / 180A
60A / 360A30A / 180A


Car Applicable
1/8 - 1/10 Rock Crawler and Tank or Boat
1/10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank


Motor Limit

Brushed Motors540/550/775 Series2S LiPo or 6S NiMH: ≥10T or\RPM<3000@7.4V


3S LiPo or 9S NiMH: ≥16T or RPM<2000@7.4V


Brushed motor540 or 550 series
2S Lipo or 6 NiMH: T ≥12T or RPM<3000 @7.2V3S Lipo or 9 NiMH: T≥18T or RPM< 2000 @7.2V



Battery
2-3S LiPo or 5-9S NiMH
2-3S Lipo or 5-9 NiMH


BEC Output
6V/7.4V @ 3A (switch mode)
2A/5V (Linear Mode)


PWM Frequency
Adjustable1K/2K/4K/8K/16K
1KHz


Wires
14AWG-200mm w/ XT60 Connector
14AWG-200mm w/TAMIYA Connector


Size/ Weight
36.5(L)* 32(W)*18(H) (without fan)
36.5(L)*32(W)*18(H)


External Program Port
External Program Port Available
N/A


Programming
LED Program card
Jumper Cap


Cooling Fan
Without cooling fan
-


Weight*
58.5g
39g





Available through the Authorized Dealer Network in North America

WP-1080 ESC VS WP-1060

Higher cont. and peak current
BEC output can go up to 7.4V
9 levels of drag brake mode
Adjustable PWM frequencies
Freewheeling capability
Adjustable neutral range (9 levels)
Adjustable reverse/drag brake
LED program box supported
Electronic switch
Aluminum case
