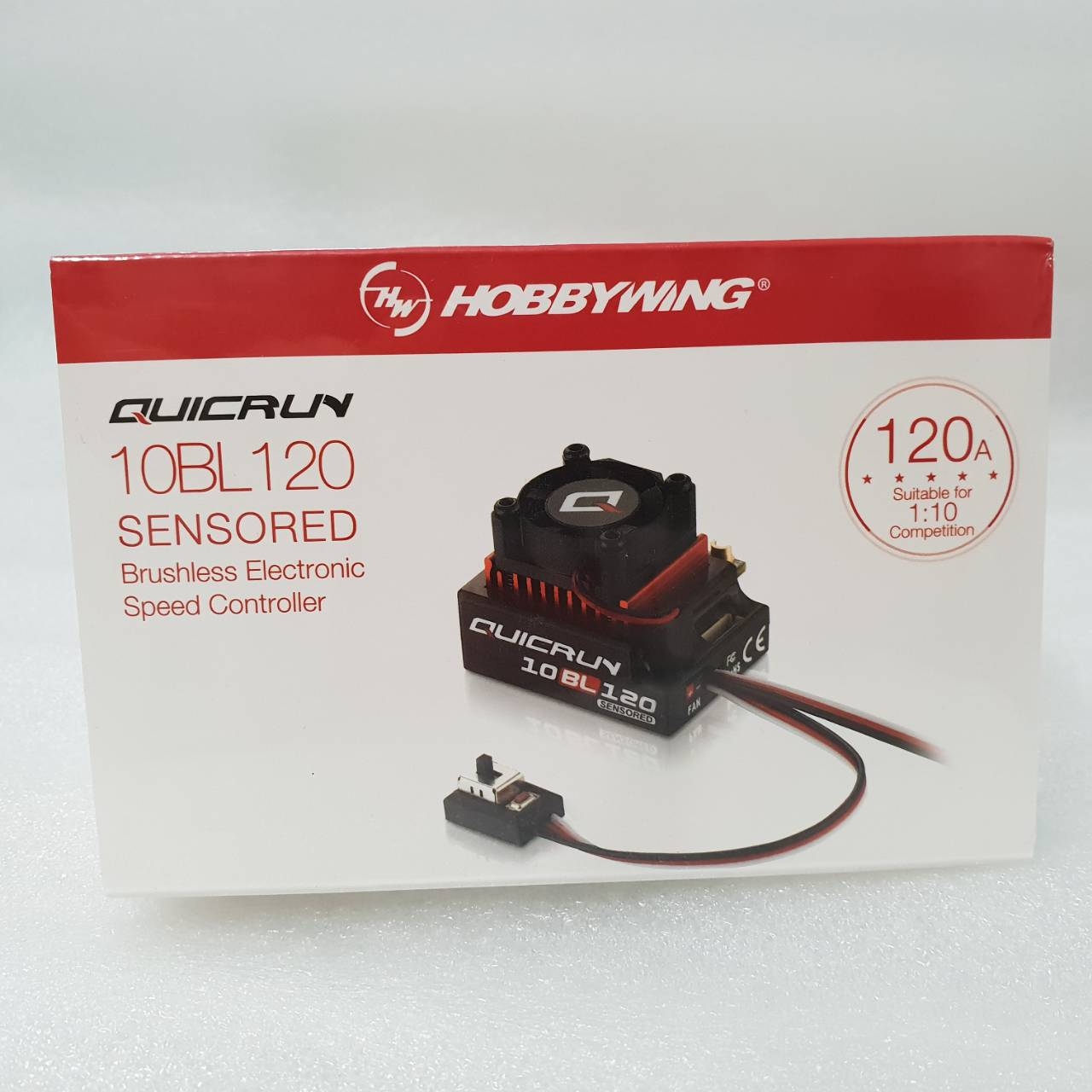

QuicRun 10BL 120A Sensored

Features



High performance but low price, users can own this reliable race-ready ESC at an affordable cost.
Compact size, suitable for various car chassis
Auto identification system can recognize sensored / sensorless brushless motors automatically.
Core competition program for excellent control feels & multiple programmable items.
8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential
Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.
Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use. (purchase separately)

Specifications



Model
QR10BL120
QR10BL60


Cont. / Peak Current
120A / 760A
60A / 380A




Applicable
1/10th Touring Car/Buggy/F1/Drift Car, and etc.
1/10th Touring Car/Buggy/F1/Drift Car & 1/12th On-road



Motor Limit (Note) 4-6 cells NiMH / 2S LiPo
8-9 cells NiMH / 3S LiPo



≥3.5T (1/10 On-road), ≥4.5T (1/10 Off-road)
≥8.5T (1/10 On-road), ≥10.5T (1/10 Off-road)



≥8.5T (1/10 On-road), ≥13.5T (1/10 Off-road)
≥13.5T (1/10 On-road), ≥17.5T (1/10 Off-road)



Battery
4-9 cells NiMH, 2-3S LiPo
4-9 cells NiMH, 2-3S LiPo


BEC Output
6V@3A, Linear Mode
6V@2ALinear Mode


Cooling Fan
Powered by the battery
6V (The cooling fan gets its power supply from the built-in BEC)


Dimensions / Weight
43 x 36 x 33mm (w/ Fan) / 105g (w/ Wires & Fan)
33 x 28 x 31.5mm (w/ Fan) / 59g (w/ Wires, w/o Fan)



Note: “T” indicates the limit value of motor turns when the ESC timing is set to 0 degree. The larger the timing, the more turns the motor needs. Please pay close attention to temperatures of the motor and the ESC to avoid any damage to these two equipments.
Recommended power system
The reference gear ratios in the above form are based on the 1/10 RC cars with 2S Lipo and 0 timing ESC. If the ESC timing is increased, then the gear ratio needs to be increased accordingly. Besides, please pay attention to the temperature of the ESC and the motor to avoid any damage to the equipment.
pair with Quicrun 3650SD motors
