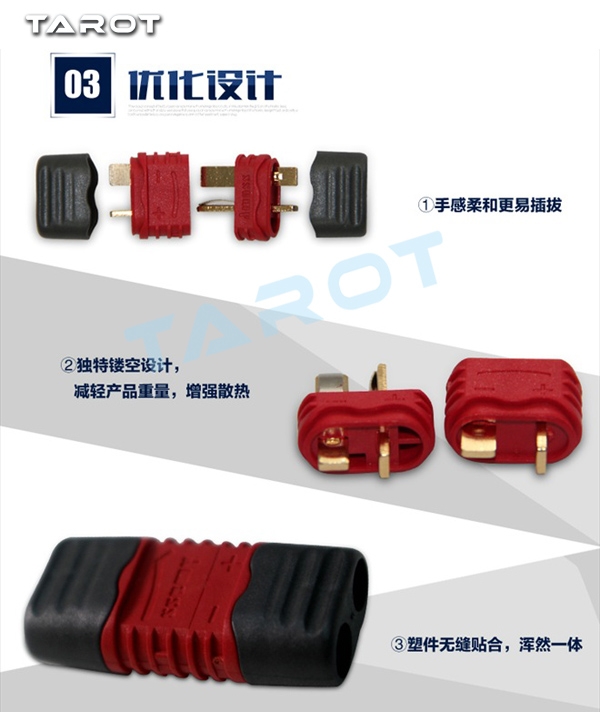

sheathed T plug

Product Description:

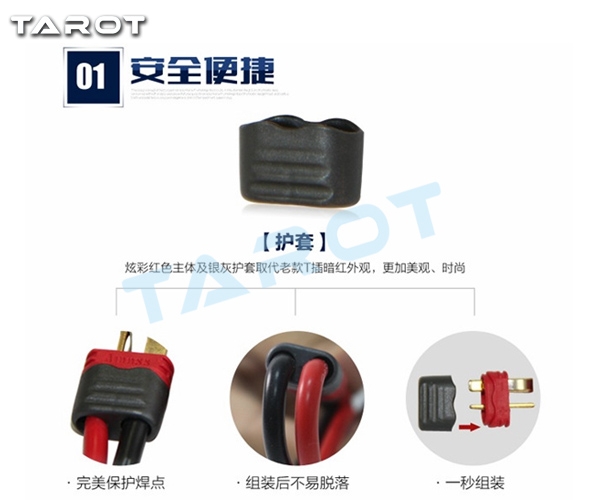

The latest T-type plugs, new design, new look, breaking the traditional T insert design, and taking into account the traditional T plug compatible use. Sheathed protection design, insert more durable than conventional T, safer and more convenient. Sheath maximum applicable to 12AWG wire through for most of the equipment and batteries.
Product parameters:
The main material and Plating: gold-plated copper
Insulator Material: Nylon / PA
Contact resistance: 0.4MΩ
Maximum continuous current / instantaneous current: 36A / 60A
Temperature: -20 to 120
500 average insertion force: 25N
Weight: 5.6G / pair
Recommended frequency of use: 1000times
Wiring Regulations may recommend: 12AWG
Recommended welding standards: 480 / 4S
Product Specifications:
T-type male plug × 1 (19 × 9 × 16MM) 2.6G
T-type female plug × 1 (15 × 9 × 16MM) 2.4G
Sheath × 2 (10 × 9 × 16MM) 0.4G
