250MX Brushless Motor

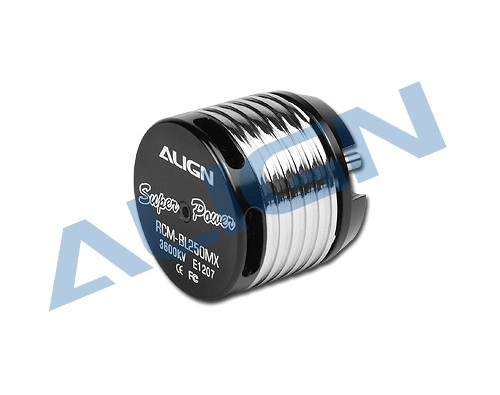

Product:







Product:

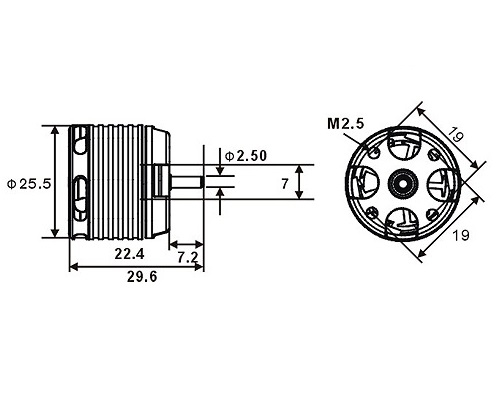

Specification Drawing:

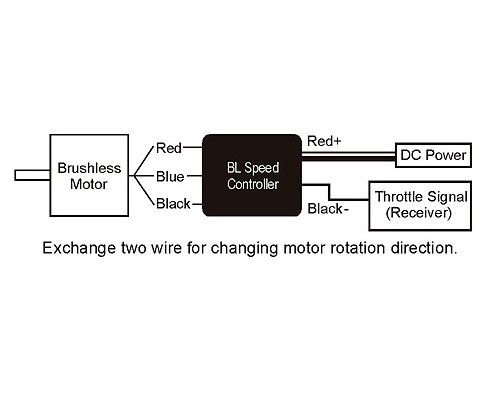

Wiring Schematic Drawing:








Package:







Instructions:
Specification:



1.The 250MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.2.The 250MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.3.High torque, high efficiency, low temperature variant, stable and quiet.4.Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.5.Suitable for all T-REX 250 class machines.6.Manual Download





For more detailed information, please refer to the Power Tip







Lifetime Service



Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .


Input voltage:2S~3S 2-3cell Li-PoMax continuous current:16/24A(5sec)Max output power:Approx. 170w/250W(5sec)KV value:3600KVStator Dimension:1910Stator Arms:9Magnet Poles:6Dimension:spindle 2.5xΦ25.5x22.4mmWeight:Approx. 33.5g
